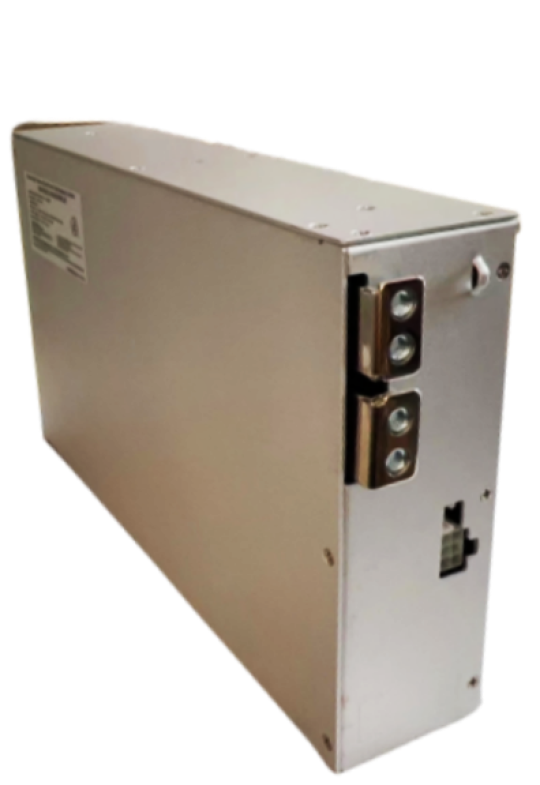

APW111721c,17V-21.6V,RSPri_V1.25，EMC
$318.00
For S23 Hyd.,S21e XP Hyd.,S21 XP+ Hyd.,S21e Hyd.,S21 Hyd.,S21+ Hyd.,S19 Hyd.,T19 Hyd.,T19 Pro Hyd.,S19 Pro Hyd.,S19 Pro+ Hyd.,S19 XP Hyd.,S19e XP Hyd.,S21 XP Hyd.,S19 XP+ Hyd.
| Function | S23 Hyd./S21e XP Hyd./S21 XP+ Hyd./S21e Hyd./S21 Hyd./S21+ Hyd./S19 Hyd./T19 Hyd./T19 Pro Hyd./S19 Pro Hyd./S19 Pro+ Hyd./S19 XP Hyd./S19e XP Hyd./S21 XP Hyd./S19 XP+ Hyd. Hydro-cooling Miner |
| Price |
318 $/Unit
|
|
|
APW111721c,17V-21.6V,RSPri_V1.25，EMC
Note：
Please update your ANTMINER with the newest firmware accordingly after replacing the power supply.
*If you need purchase these materials, please contact us. For more operation guidance please refer to this article《APW11 PSU Replacement Instructions》
| Product Glance | |
| Out1 | |
| DC Voltage | 17V-21.6V |
| Rated Current(380V input) | 300A |
| Rated Power(380Vinput) | 6500W |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <5S |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 1A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V—12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <5S |
| Short Circuit Protection | >10mS |
| Input | |
| Voltage Range | 380-415V AC |
| Frequency Range | 50~60 Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（380V 50Hz） |
| Protection | |
| Low-voltage Input | < 304V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 300A-350A |
| Environment | |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non–condensing） |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 320mm*179mm*63mm |
| Net Weight | 5kg |
| Cooling System | Water cooling |
| Inlet temperature | 20-35 ℃ |
| Water flow rate | 8L/min |
| Water pressure | <3.5 BAR |
Purchasing Guidelines
NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
