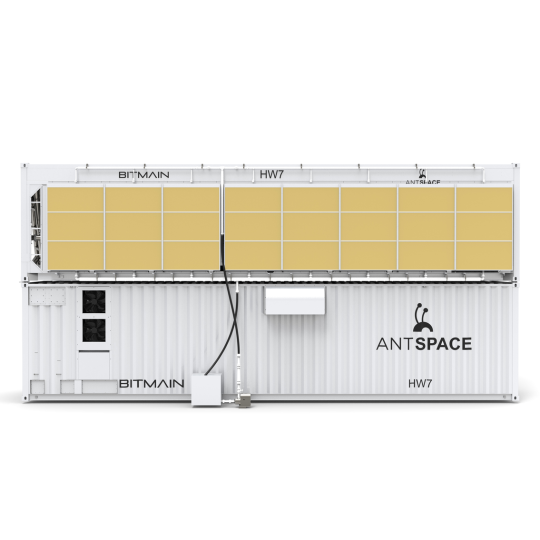

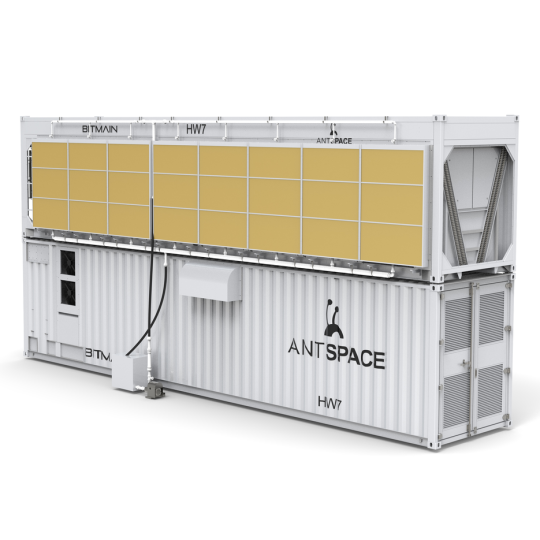

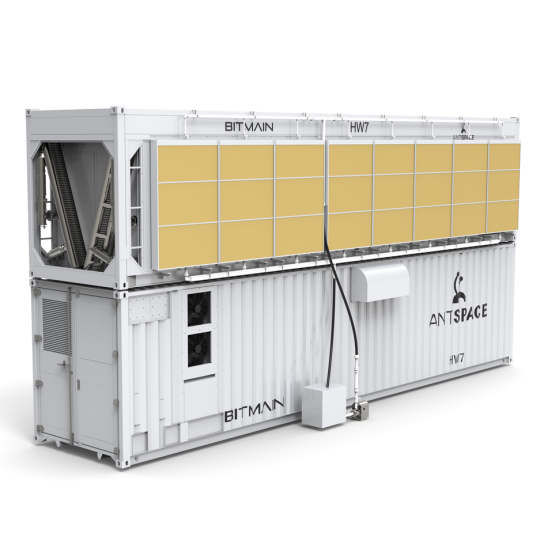

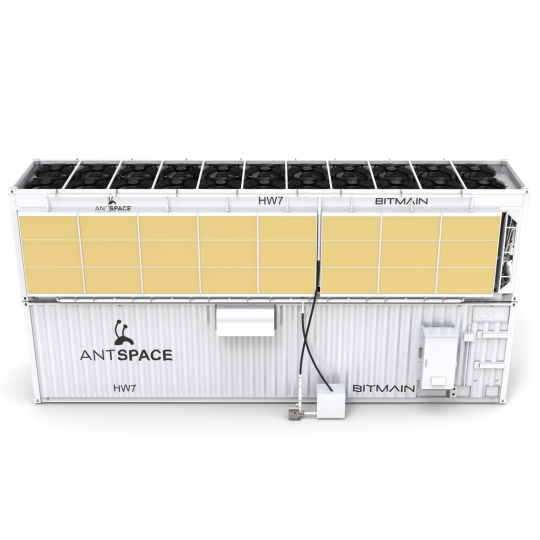

ANTSPACE HW7 For Sales
| Specifications
| Product Overview | Value |
| Model | ANTSPACE HW7 |
| Dimensions (L*W*H), mm | 12192*2438*2896 |
| Miner Capacity | 396 standard hydro-cooling miners or 242 2U server-style hydro-cooling miners |
| PUE | 1.031 @ 25℃ ambient temperature, 35℃ supply liquid temperature |
| Container certification | Classification Society Certification |
| Safety Certification | NFPA 79:2024 UL 508A:2018 R7.22 CSA C22.2 No. 301:23 UL 2011:2022 UL 2755:2018 EN 60204-1:2018 EN ISO 12100:2010 |
| Input Voltage, V | 380~480 (50/60Hz, 3P/N/PE) |
| Ambient Temperature, ℃ | -40~50 |
| Ambient Humidity, RH | 10%~90% |
| Altitude, m | ≤2000 |
| Detailed Specifications | Value |
| Shipping weight, T | 16 |
| Operating weight, T | 25 |
| Main Switch Capacity of Power Distribution Cabinet, A | 1200 |
| Rated Power, kW | 2100 |
| Maximum Supported Input Current, A | 960*4 |
| Maximum Supported Input Power, kW | 2500 |
| Maximum Current per Miner Slot, A | 25 |
| Inlet cable | The inlet cables can withstand high voltage above 600V. Single-phase requirements are as follows: Copper cables: L1 cable 600kcmil *12 L2 cable 600kcmil *12 L3 cable 600kcmil *12 N cable 600kcmil *8 PE cable 600kcmil *4 Aluminum cables: L1 cable 800kcmil *12 L2 cable 800kcmil *12 L3 cable 800kcmil *12 N cable 800kcmil *8 PE cable 800kcmil *4 |
| External Interface | Tri-Clamp Interface: DN125 ISO 139.7 (ISO2852) |
| Flow rate, m³/h | >86*2 |
| Rated Power of Circulation Pump, kW | 30*2 |
| Cooling Unit Specifications | |
| Product Overview | Value |
| Type | Dry Cooler + Water Curtain |
| Quantity | 1 |
| Dry Cooler Dimensions (L*W*H), mm | 12192*2438*2896 |
| Water Curtain Dimensions (L*W*T), mm | 11700*2250*150 (single side) |
| Heat Dissipation Capacity, kW | 2000 |
| Supply Liquid Temperature, ℃ | 35±1℃ @ 30℃ ambient 49±1℃ @ 50℃ ambient (with water curtain enabled) |
| Container Certification | Classification Society Certification |
| Rated Power of Cooling Fan, kW | 4.1*22 |
| Rated Power of Water Curtain Pump, kW | 1.5*2 |
| Input Voltage, V | 380~480 (50/60Hz, 3P/N/PE) |
| Detailed Specifications | Value |
| Shipping Weight, T | 14 |
| Operating Weight, T | 16 |
| Connection Interface | Tri-Clamp Interface: DN125 ISO 139.7 (ISO2852) |
| Noise Level (25℃, 15m), dBA | 75 |
| Pipe Material | 304 Stainless Steel |
| Water Curtain Water Consumption, m³/h | 0.25~5.3 |
| Coolant Usage, m³ | 3.2 |
| Points For Attention
| 1 | The cooling tower must be placed on flat ground with a levelness requirement of ±1°. |
| 2 | The ground must be hard and stable, capable of withstanding a load of at least 45t. |
| 3 | A 40t or above crane is required for unloading the ANTSPACE and cooling tower. |
| 4 | Additional items such as stairs, transformers, cables, bridge racks, and cable distribution boxes are not included in the ANTSPACE delivery. If needed, the BITMAIN team can provide design recommendations. |
| 5 | The customer must confirm the container opening direction. By default, the side away from the water pump is the main door. |
| 6 | Maintain at least 5m of air intake space around the cooling tower. |
| 7 | Altitude: ≤2000m. If the altitude exceeds 1000m, transformers and switches should be derated, and the total power of ANTSPACE should be reduced by 1% for every 100m increase in altitude. |
| 8 | Operating temperature: -40℃ to 50℃. Operating humidity: 10%RH to 90%RH. When the initial coolant temperature is below 20℃, the internal circulation and PTC heater should be turned on to heat the coolant above 20℃ before starting the miners. |
| 9 | When the ambient temperature exceeds 30℃ and water supply is sufficient, the cooling unit can activate the water curtain. |
| 10 | Select pure water or suitable antifreeze as the coolant according to local climate conditions. |
| 11 | The suitable ambient temperature for ANTSPACE does not represent the suitable ambient temperature for the miners. |
| Purchasing Guidelines
1. The ANTSPACE HW7 is recommended to be used simultaneously with the ANTMINER S19 Hyd. series, S21 Hyd. series, and S23 Hyd. series.
2. The pictures shown are for reference only; the final shipment version shall prevail.
3. The container does not come with coolant, which must be purchased separately by the customer. We recommend purchasing the official antifreeze from the BITMAIN official website to ensure optimal performance and compatibility:
1) Link: AFC02-AZ (20)
• Product description: Antifreeze with a freezing point of -50°C, suitable for all water-cooled products.
2) Link: AFC02-AZ (10)
• Product description: Antifreeze with a freezing point of -40°C, suitable for all water-cooled products.
| Shipping Details
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
3. Click here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.
| Warranty
1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
4. Click here for a complete list of the Terms & Conditions that apply to all orders placed on https://shop.bitmain.com.
