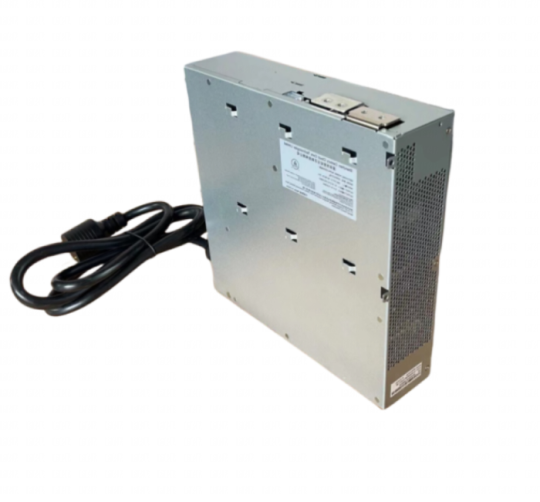

APW121215g_12V-15V_V1.21 EMC
Note:
This power supply is version g.
You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly from official website.
There are many versions of this power supply, it is recommended to consult customer service before purchasing>>Contact now
| Product Glance | |
| Out1 | |
| DC Voltage | 12V-15V |
| Rated Current(220V input) | 208A (when 15V can upto 233A~240A) |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 15A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V—12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Input | |
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Protection | |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 291A-350A （protection value varies under different voltage） |
| Environment | |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non–condensing） |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 254.6mm*251.6mm*63mm |
| Net Weight | 3.6kg |
| Cooling System | Forced‐air cooling |
| Noise | 45dBA |
Purchasing Guidelines
NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
