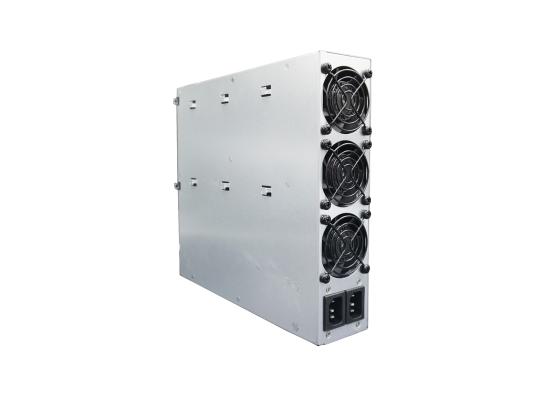

APW12_12V-15V EMC （b Version）
Note:
This power supply is version b，which can replace a and b（Can not replace c,d,e&f etc.）version after your miner is updated the newest firmware.
You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly from official website.
There are many versions of this power supply, it is recommended to consult customer service before purchasing>>Contact now
| Product Glance | |
| Out1 | |
| DC Voltage | 12V-15V |
| Rated Current(220V input) | 208A (when 15V can upto 233A~240A) |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 15A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V—12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Input | |
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Protection | |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 291A-350A （protection value varies under different voltage） |
| Environment | |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non–condensing） |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 254.6mm*251.6mm*63mm |
| Net Weight | 3.6kg |
| Cooling System | Forced‐air cooling |
| Noise | 45dBA |
