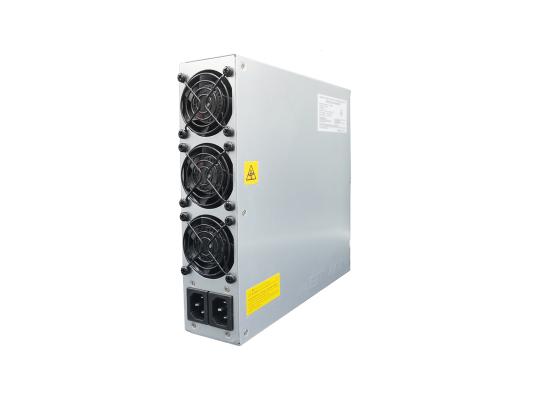

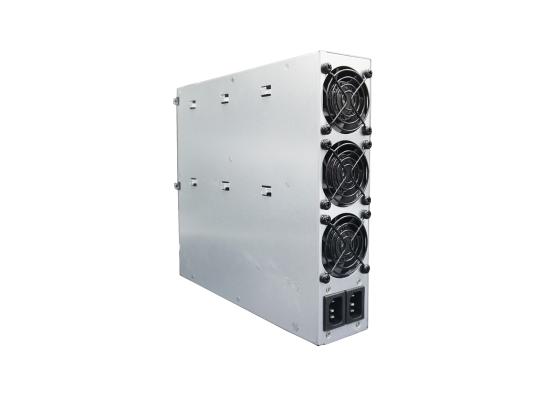

APW12_12V-15V EMC （f non-calibrated Version）
$186.00
*S19j Pro SN code 5-7 digits are D4A/D4B/D4C/D4E/D4D cannot use this PSU
| Function | S19 Pro/S19j Pro/S19j Pro+ SHA256 Air-cooling Miner |
| Price |
186 $/Unit
|
|
|
APW12_12V-15V EMC （f non-calibrated Version）
Note:
This power supply is version f
You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly from official website.
There are many versions of this power supply, it is recommended to consult customer service before purchasing>>Contact now
| Product Glance | |
| Out1 | |
| DC Voltage | 12V-15V |
| Rated Current(220V input) | 208A (when 15V can upto 233A~240A) |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 15A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V—12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Input | |
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Protection | |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 291A-350A （protection value varies under different voltage） |
| Environment | |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non–condensing） |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 254.6mm*251.6mm*63mm |
| Net Weight | 3.6kg |
| Cooling System | Forced‐air cooling |
| Noise | 45dBA |
